0,5-5 Lt/h 1,6-16 Lt/h 6-60 Lt/h 10-100 Lt/h 25-250 Lt/h 40-400 Lt/h 50-500 Lt/h
This type of flowmeters is used to detect the instantaneous flow of low liquid or gas fluids. Glass or metal body, even when connected upright, the float moves freely from the bottom to the bottom without any friction. This change flow rate depends on the weight of the float and the density and viscosity of the fluid. Its compact structure and adjustment valve enable precise flow adjustment.
| Body Material | SS316 Stainless Steel |
|---|---|
| Maximum Temperature (Tmax) | 100 C |

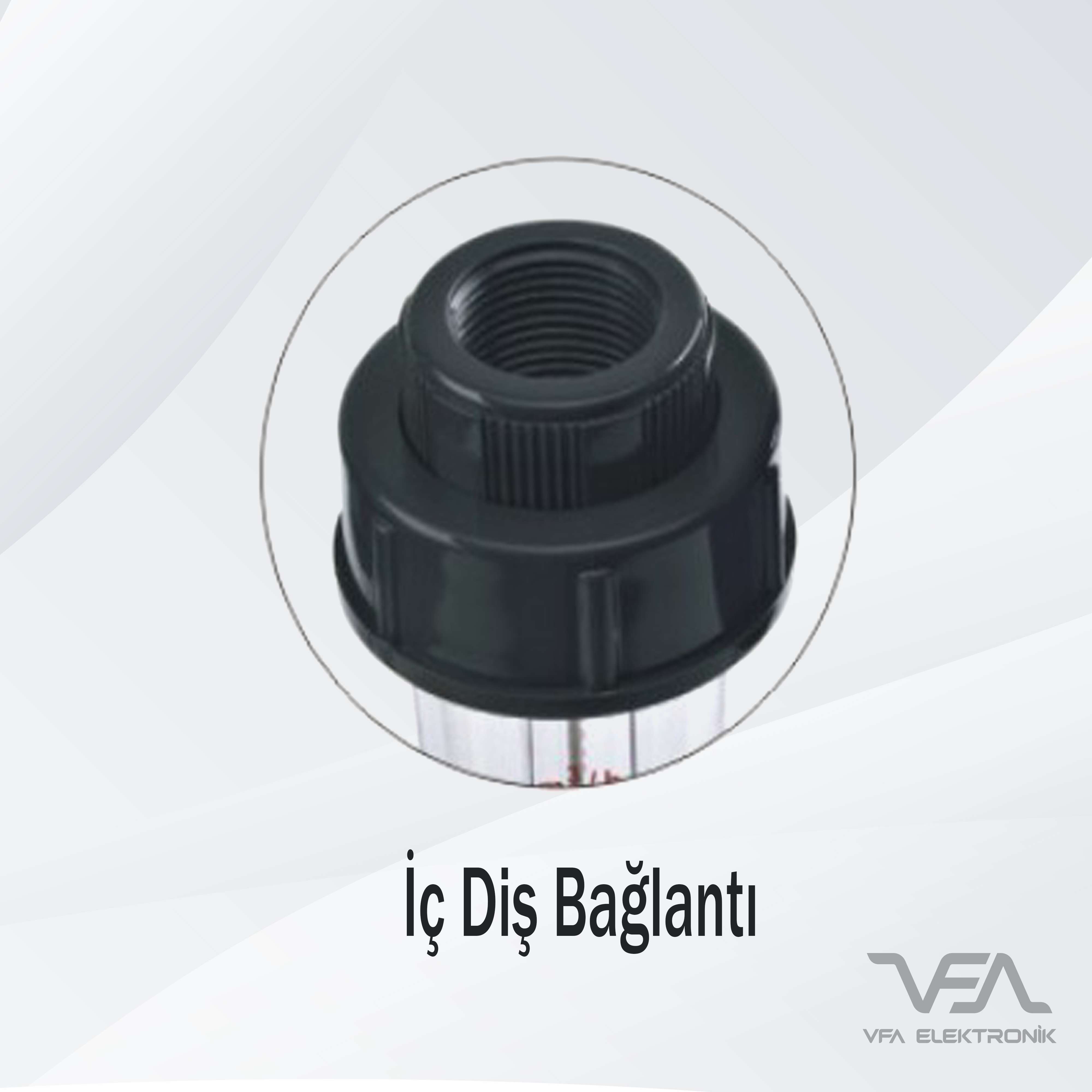

| Connection Size | ¼” NPT |
| O-Rings | Viton |
| Fluids | Gas |
| Measuring Range | 0.5...500,Lt/h |
| Precision | %2.5 T.S |
| Size | 147 mm |
| Measuring Tube | Pine |
| Maximum Pressure (Pmax) | 16bar |
