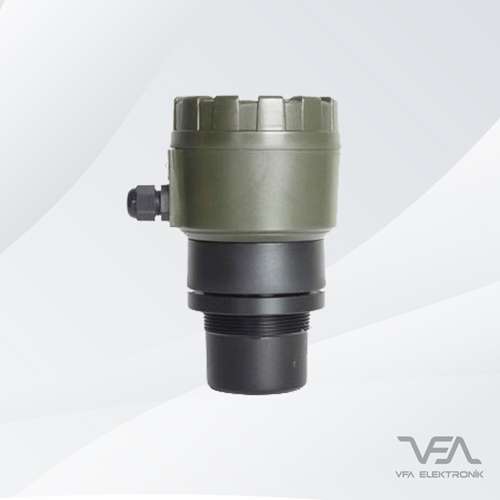

The Orion ultrasonic level sensor (ECH300 series) is used for non-contact continuous level and volume measurements of liquid substances in open and closed tanks.
Application Areas
Sand, Cement, Waste Water, Clean Water, Milk and Dairy Products, Beverage, Oil, Gasoline, Diesel, Pharmaceutical Industry, Dolomite, Calcite, Perlite Gypsum, Lime, Fine Sand, Stone, Ceramic, Pulverized Coal Powder, Flour and Feed, Plastic Granules.
Official Compliance
EN61000-6-4: 2001 Generic emission standard. Industrial envoirements.
EN61000-6-2: 2005 Generic immunity standard. Industrial envoirements.
EN61010-1: 2001 Safety requirements for electrical equipment for measurement, control and laboratory use
| Measuring Distance | 6m & 8m & 10m & 12m & 15m & 18m |
|---|---|
| Measurement Technology | High Frequency Ultrasonic Measurement Technology |
| Output Signal | Standart 4-20mA ve MODBUS RS485 |
| Switch | 2 Relay Contacts |
| Protection Class | IP67 |
| OperatingTemperature | -20°C+80°C |
| Precision | 0.2% at Set Measurement Range |
| Operating Pressure | 3 Bar |
| Body | PC-ABS |
