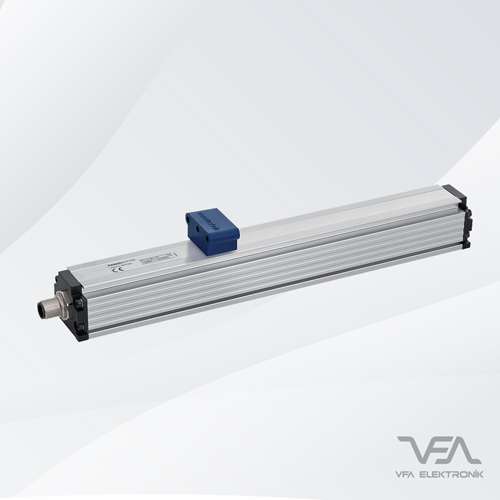

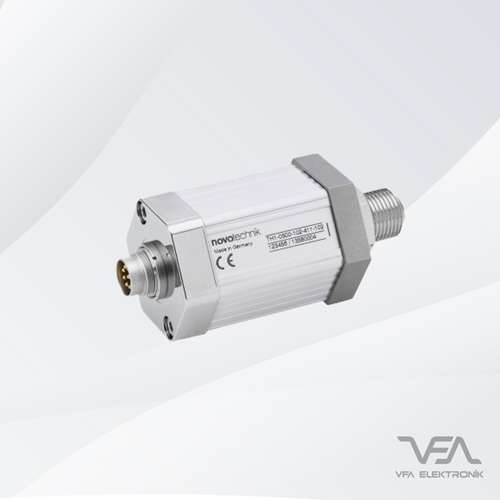

Measures non-contact and magnetostrictive principle in a robust profile. It offers an infinite mechanical life as it works without friction. Since it works as an Absolute, it does not lose its position information in power cuts. It is insensitive to dirt, dust or moisture and therefore suitable for operation in harsh industrial environments
- Unlimited mechanical life with non-contact magnetostrictive principle
- Absolute, ie not losing position information in power cuts
- Extra resistant to vibration and impacts
- With its IP68 protection level, it is not affected by bad environmental conditions such as heat, dust, oil, humidity and electrical noise.
- Since there is no cable connection in the magnetic reader sensor, there are no cables that are constantly in motion and break in time.
- Minimum EMC problems with galvanic isolation
- Many different output options analog or digital (SSI, CANopen, Incremental, Start-Stop)
Application Areas
- Presses
- Metal Processing Machinery
- Plastic Injection Machines
- Aluminum Injection Machines
- Textile Machinery
- Marble Machinery
- Packaging, Bottling, Packaging and Food Machinery
- Test Machines
- Robots and Automation
| Stroke Value | Many different models from 0 ... 50 mm to 4250 mm |
|---|---|
| Resolution | Analog: 16 bits (Theoretically infinite) Incremental: 1 μm, 5 μm (Value of one phase for four-phase resolution) SSI: 1 μm, 5 μm or 10 μm Start-Stop Pulse: 2800 ms -1 CANopen: 1 μm either da 5 μm |
| Repeatability | For analog output models: ≤ 0.03% FS For digital output models: ≤ 6μm |
| Linearity | Analog output models: ≤ ± 0.02% FS Digital output models: <250 mm ≤ ± 25 μm <750 mm ≤ ± 30 μm <1000 mm ≤ ± 50 μm <2500 mm ≤ ± 80 μm |
| Output Signals | With analog output; 0 - 10 VDC, 4 - 20 mA, 0 - 20mA (400 series) Pulse Output / Incremental (800 series) CANopen Interface (600 series) SSI Synchronized Serial Interface (200 series) Start-Stop pulse interface (100 series) |
| Refresh Rate | 16 kHz |
| Maximum voltage protection | 40 VDC (Reverse polarity protection) |
| Maximum voltage supply | 19 ... 30 VDC in analog models 13 ... 34 VDC in digital output models |
| Fixing / Connection | Easy assembly with metal connection terminals |
| Protection Class | IP68 or IP67 |
| Operating Temperature | -40 ° C ... + 85 ° C (ambient temperature -40 ° C ... + 105 ° C) |
| Life | Unlimited mechanical life |
| Electrical connection type | With cable or socket |
| Magnets used | Z-TP1 P06 small version - 0.5 ... 3 mm working range Z-TP1-P07 large version - 3 ... 12 mm working range Z-TP1-P08 slide type - easy assembly with the joint on it |
