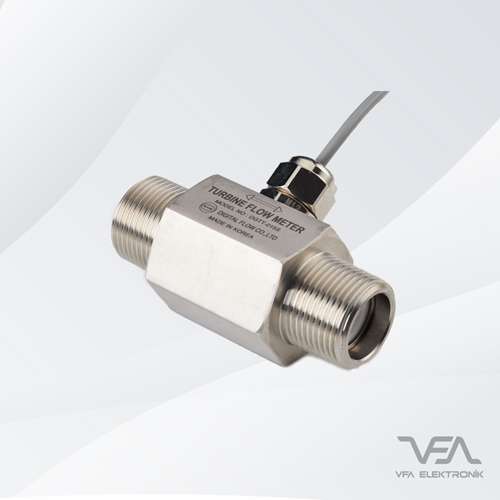

Stainless steel turbine type flowmeters; These are high precision impeller flowmeters specially designed for continuous use in many fields such as water, petroleum, food and chemistry. Thanks to the pulse sensor, it produces a pulse (square wave) every time the magnets in the wheels communicate with the sensor. In this way, the amount of flow is determined in direct proportion to the flow rate. It can be used in monitoring instantaneous and total flow rates and in various control stages depending on these flow rates.
| Body Material | AISI 316 Stainless Steel |
|---|---|
| Connection Size | DN15 |
| Fluid | Non-Particulate Fluids |
| Flow Range | 0.6 - 6 m3/h |
| Precision | ± %0,5 , %1 ± |
| Temperature Range | -20˚C…+80˚C ops. -20˚C ..... 120˚C |
| Repeatability | %0,1 O.D |
| Turbine Material | CD4MCU Stainless Steel |
| Turbine Rotation Rate | Standart 10:1, Ops. 20:1v |
| Maximum Pressure (Pmax) | 16 - 25 bars |
| Output | Square Wave (Pulse), ops. 4-20mA |
| Power Supply | 12 ~ 24VDC |
| Protection Class | IP65 or Ex-proof |
