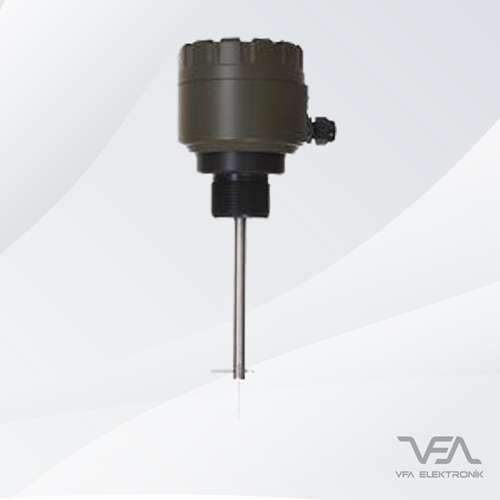

VF-ROT320 digital motorized rotating pallet flag level sensor (ROT320 series) without gearbox is used for level detection of all kinds of dust, coarse and solid bulk materials in all types of containers and silos. With the triple DIP switch inside the device, you can set 8 different torque options and choose the most suitable torque setting according to the specific weight of the product.
Applications Areas
Sand, Cement, Pharmaceutical Industry, Dolomite, Calcite, Perlite Plaster, Lime, Fine Sand, Stone, Ceramic, Coal, Pulverized Coal Powder, Flour, Feed, Sugar, Seed, Plastic Granules.
Official Compliance
EN61000-6-4: 2001 Generic emission standard. Industrial envoirements.
EN61000-6-2: 2005 Generic immunity standard. Industrial envoirements.
EN61010-1: 2001 Safety requirements for electrical equipment for measurement, control and laboratory use
| Step Setting | 8 Torque |
|---|---|
| Power Supply | 220VAC |
| Relay | 1 NO-NC |
| Protection Class | IP67 |
| Operating Temperature | -20°C+80°C |
| Roller Bearing | Dustproof Double |
| Meterial | Stainless Steel SS316 |
| Connection | R1½ Whitworth Pipe Thread Process Connection |
| Operating Pressure | 0.5 Bar |
| Body | PP |
