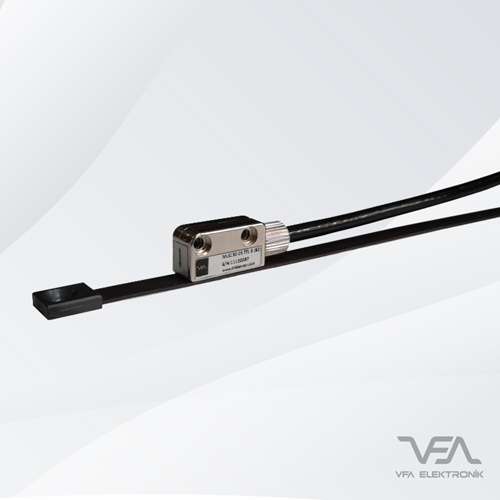

Reader sensor capable of contactless measurement on magnetic tape; extra resistant against environmental factors such as moisture, oil, dust, thanks to the integrated belt scrapers; cable or spiral model options
- Magnetic measurement
- Small size
- Easy montage
- Resolution from 1 μm to 100 μm
- High accuracy and repeatability
- Spiral and wired options
- Measurement up to 100 meters
- Sturdy aluminum body
- IP67 protection class
- Thanks to the scrapers integrated into the sensor body, it is extra protected from external factors such as dust, dirt and chips that may occur on the magnetic band or profile on which it moves.
Application Areas
- Machinery Industry
- PVC Cutting Machines
- Woodworking Machinery
- Press Brake
- Textile Machinery
- Marble Machines
- Transfer Machines
- Saws
- Metal Processing Machinery
- Turning, Milling
- Bohrwerk
- Vargel
- Automation and Robots
| Measuring Distance | Up to 100 meters |
|---|---|
| Resolution | 1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 80µm, 100µm (Optional different resolutions can be realized) |
| Measuring Principle | Magnetic |
| Output Type | Push-Pull or TTL RS422 Line Driver |
| Magnetic Tape Type | B1, B2, B5 |
| Output Signals | A, /A, B, /B, Z, /Z |
| Current Consumption | Maximum 40 mA (For Each Channel) |
| Power Supply | PP: 10..30 VDC or TTL: 5 VDC |
| Outer Body Structure | Aluminum |
| Electrical Connection | D-Sub 9 pin, 5 or 8 x 0.14 mm2 shielded cable |
| Working Speed | 3 m/s |
| Repeatability | ± 1 Pulse |
| Operating Temperature | -25°C ... +85°C |
| Protection Class | IP67 |
