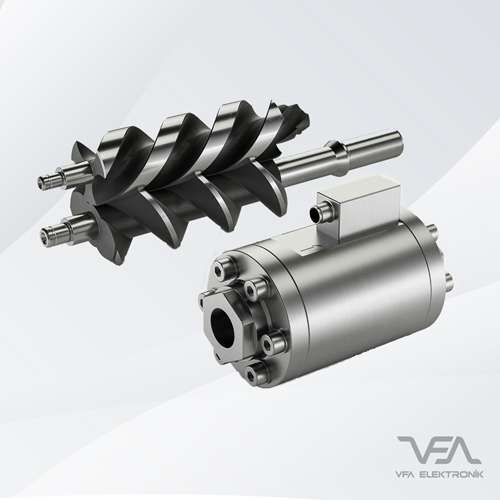

Helical gear (spiral) flowmeters, to determine the flow rate of viscous fluids; It is a measurement method designed by placing two cycloidal helical shafts in a cylindrical casing, creating a closed area on the inner wall of these shafts and connecting the movement of the fluid only to the rotation of the shafts.This method ensures minimum leakage, and a very high precision is achieved with continuous flow and minimum pressure loss.
Usage areas
Variable viscosity fluids, paraffin and viscous fluids, food applications, chemical fluids, grease, etc. oils.
Usage Sectors
Filling and dosing systems, Paper industry, Heavy industry, Insulation and Coating Industry, Test units, Paraffin Industry, Food industry.
Notes
Provides long service life with its robust structure.
Body options for abrasive fluids
Ideal choice for low flows and variable viscosity fluids
| Flow range | 0,4-400Lt/dk |
|---|---|
| Precision | ±% 0,1 |
| Repeatability | ± 0.05% |
| Max. Pressure Strength | 400 Bar |
| Temperature Resistance | -40°C ile +150°C |
| Viscosity | 1000,000 mm²/s |
| Output | Pulse, 4-20mA, Hart |
