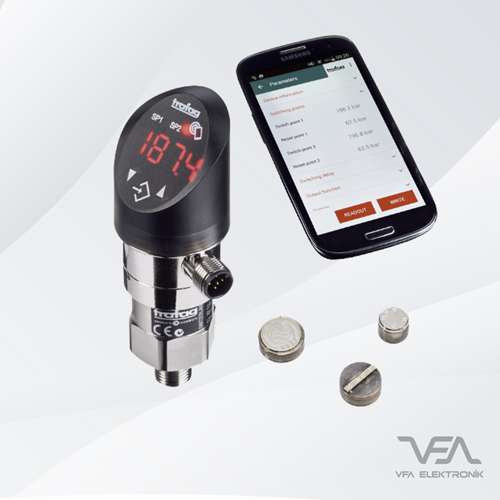

- Display and smart pressure switch and transmitter in one device
- Thin film steel diaphragm
- 2 PNP transistor outputs
- Both current and voltage output can be changed in one device at any time
- 3-fold protection against exceeding limit pressures
- Thanks to the NFC feature, you can change all parameters with the special Trafag App on Android mobile phones, save and upload them to other devices easily, with the data logger feature, many features such as saving the read values and graphing them in one device.
- Models with many different options from 2.5 bar to 0 ... 600 bar
- ± 0.5% FS high precision
- IP 67 Protection Class
- Different analog output signal options: 4-20 mA, 0-5 VDC, 1-6 VDC, 0-10 VDC
- Mechanical connection options for pressure: G1 / 4 "male, G1 / 4" female, G1 / 2 "male, 1/4" NPT male, 1/2 "NPT male, M14x1.5 male, R1 / 4" male, 7 / 16 "-20UNF male, 7/16" -20UNF female
- Capacitive buttons below the indicator for quick adjustment
- Ability to rotate the indicator and electrical connection socket independently of each other for easy placement and reading

Applications Areas:

- Manufacturing Benches
- All hydraulically operated machines
- HVAC machines (Heating, air conditioning, ventilation units)
- Cooling units
- Water purification machines
