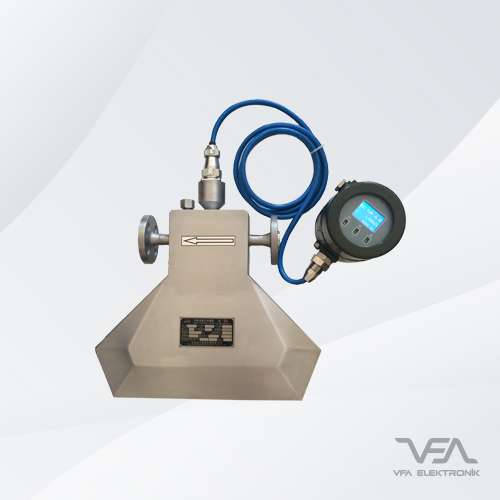

The sensors at the inputs and outputs of the specially designed flow tube and the signals coming from the sensors are in the same phase when there is no flow, the phase difference occurs between the vibration and the signals when the flow starts to pass, it is directly proportional to the mass flow through the tubes, the flow is compensated with the heat sensor placed on these tubes. These products can also detect fluid density.
| Precision | ±0.2% Ops. ±0,1% |
|---|---|
| Line Diameter | Dn3-Dn200 |
| Density Measurement Range | 0.3-3000 g/cm3 Hass. ±0.002 g/cm3 |
| Temperature Resistance | -50…+200°C, Ops ( -200…+300) Hass.±1C |
| Output | 4-20mA-Ops Flow rate, density, temperature signal |
| Communication | Rs485, Modbus protocol |
| Protection and Compressive Strength | Ip67-4.0 Mpa |
