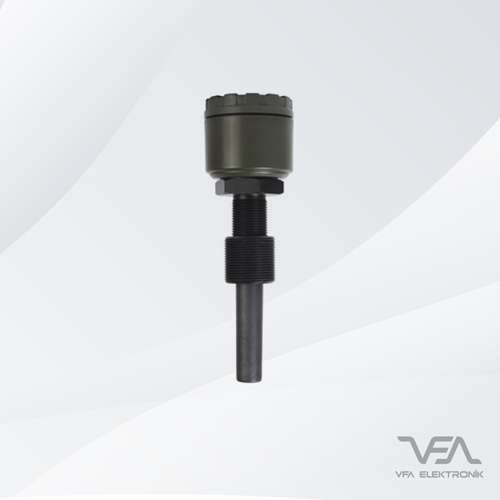

The VF-EX200 is a capacitive level sensor used for level control in liquids with low conductivity.
Application Areas:
Liquid tanks, glycol tanks, food machinery, cooling liquid tanks, ships, brine tanks, waste water, wine tanks, clean water tanks ... Oil tanks, CO2 liquid tanks, high temperature tanks, low conductivity liquids. Grain storage, cement silo, sand, paste, milk powder, feed, flour, organic and plastic granule tanks. Hot adhesive and high viscosity acid and chemical liquids.
Advantages:
- Optional to high temperature
- Durable design.
- It can be mounted easily and its sensitivity can be adjusted.
- It does not require cleaning.
- Foam, splashes and probe
- coating is not affected.
- It can be connected in reverse.
| Material to Measure | For Low Conductivity Fluids |
|---|---|
| Power Supply | 24 VDC |
| Operating pressure | (-) 1 ... (+) 100 bar (depending on the model) |
| Operating temperature | (-) 40 ... (+) 150 C (depending on the model) |
| Power Consumption | Max. 50 mW |
| Output | 1 x NANK 5A / 250VAC Relay |
