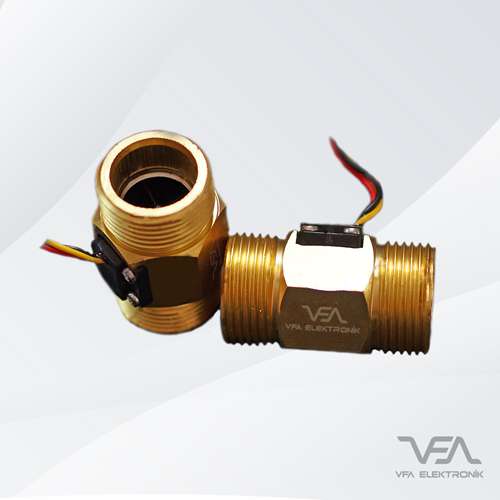

This type of flowmeters are designed to measure and observe low and normal liquid flows and are suitable for precise measurement. Thanks to its brass structure, it is resistant to impacts and has anti freezing protection. Designed for fluid control, the brass turbine flow meter can be used comfortably for all fluid flow measurements. Magnets mounted on each turbine propeller inside generate a "Pulse" pulse every time it passes in front of the sensor. The amount of these pulses determines the amount of flow through the device.
General features :
- Environmental protection design
- Food grade PBT material
- Small and practical
- It can be connected to the line at any angle (as long as it is fully loaded).
Application areas :
- Tea and coffee machines, Smart fountains
- Beverage industry
- Chemical - Pharmaceutical industry
- Liquid filling devices
- Liquid purification devices
| Body Material | Brass |
|---|---|
| Connection Size | DN25 |
| Fluid | Particle Free Liquids |
| Flow Range | 3.5-50L/min |
| Maximum Temperature (Tmax) | -20°C, +80°C |
| Maximum Pressure (Pmax) | 1.75 MPa |
| Output | Pulse |
| Power Supply | 5V |
